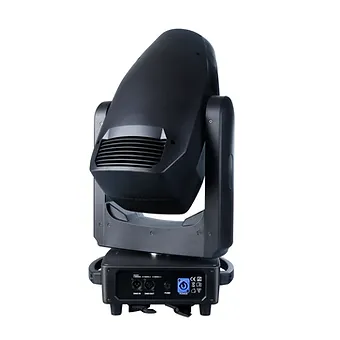

CMY 500W LED hybrid moving head with full CMY mixing, 9 colors plus CTO and CTB, and two rotating prisms at 24CH. The VERSATILIS 680CMY is a popular choice for clubs, theatre stages and touring rigs.
$1,499.00
| ✔ |
Full CMY Mixing Plus 9 ColorsCTO + CTB
Mix the color you want instead of stepping through a wheel, with correction built in
|
| ✔ |
Two Gobo Wheels7 Replaceable + 11 Fixed
Swap the rotating glass gobos yourself, or drop to a fixed wheel for speed
|
| ✔ |
Dual Rotating Prisms8-Facet + 3-Facet
Two independently rotating prisms for beam splitting and aerial texture
|
| ✔ |
4.9°–33.9° BeamSpot To Wash
A tight pencil spot opens out to a stage wash from the same head
|
| ✔ |
24CH On 5-Pin XLR With RDM23 kg · Touch LCD
One personality covers both wheels and prisms, with RDM addressing and firmware upload
|
Shop by use case: Houses of Worship · Live Band & Stage
$1,499.00
The 680CMY mixes color the way a designer expects: continuous CMY flags for smooth, stepless fades, plus a wheel of 9 colors with open, CTO and CTB for the moments when you want a hard color change or a tungsten-corrected look. Carrying CTO and CTB on board means you can warm a cool LED stage or cool a warm one without a gel run, and CMY lets you ride a color across a whole song instead of stepping between two presets.
A rotatable wheel of 7 replaceable gobos plus open gives you custom pattern projection that actually moves — the wheel rotates the pattern, so a breakup spins or travels across a stage instead of sitting still. Behind it sits a static wheel of 11 fixed gobos plus open for crisp textures and scenic depth. Because the 7 gobos on the rotating wheel are replaceable, you can order the Optional Extra Gobos set (8PCS) at $30 and load your own designs before a tour.
Two independent rotating prisms — an 8-facet and a 3-facet — sit in the optical path and can be layered, spun at their own speeds, or combined with either gobo wheel. That is where a hybrid head stops behaving like a wash light: one beam becomes 8 or 3 shafts turning through haze, which is the mid-air look that sells a dance floor or a festival stage. Because both prisms rotate, the effect stays alive instead of freezing into a static multi-beam.
The beam travels from a tight 4.9° spotlight to a wide 33.9° wash, so the same head can pick a soloist out with a hard-edged pool of light and then open up to cover the full band. On a small rig that range replaces a separate spot and a separate wash — real money saved, and one less fixture to hang, cable and focus on load-in day.
Pan runs 540° and tilt 270°, both on 16-bit scanning, so slow moves stay perfectly smooth instead of visibly stepping. That range covers a whole room from a single hang, so you are not repositioning fixtures mid-show when the band moves downstage. The 16-bit resolution is what you notice on a long fade move under a ballad, where an 8-bit fixture would chatter.
This head speaks RDM, so a compatible console can read and set its address and push firmware updates down the DMX cable you already have run — no laptop balanced on a road case, no separate upload box. It also runs standalone in Auto and Master-Slave modes when nobody is driving a desk, and the LCD touch display with 4 buttons keeps addressing and menu work quick at the back of a dark stage.
One 24-channel personality keeps the patch tidy: 5-pin XLR in and out for DMX, a Tru1 power input, and a 500W LED engine drawing 600W total from AC 100–240V at 50/60Hz. At 23 kg (50.71 lb) it is still a one-person hang from a truss or a lift onto a stand. Single units are $1,499, and every order ships free across the USA on most products with a 2-year warranty and a 30-day return policy.
Moving heads suit rigs that move with the show: clubs and small venues, touring and rental racks, band and theatre stages, corporate events and houses of worship.
The 680CMY mixes color the way a designer expects: continuous CMY flags for smooth, stepless fades, plus a wheel of 9 colors with open, CTO and CTB for the moments when you want a hard color change or a tungsten-corrected look. Carrying CTO and CTB on board means you can warm a cool LED stage or cool a warm one without a gel run, and CMY lets you ride a color across a whole song instead of stepping between two presets.
A rotatable wheel of 7 replaceable gobos plus open gives you custom pattern projection that actually moves — the wheel rotates the pattern, so a breakup spins or travels across a stage instead of sitting still. Behind it sits a static wheel of 11 fixed gobos plus open for crisp textures and scenic depth. Because the 7 gobos on the rotating wheel are replaceable, you can order the Optional Extra Gobos set (8PCS) at $30 and load your own designs before a tour.
Two independent rotating prisms — an 8-facet and a 3-facet — sit in the optical path and can be layered, spun at their own speeds, or combined with either gobo wheel. That is where a hybrid head stops behaving like a wash light: one beam becomes 8 or 3 shafts turning through haze, which is the mid-air look that sells a dance floor or a festival stage. Because both prisms rotate, the effect stays alive instead of freezing into a static multi-beam.
The beam travels from a tight 4.9° spotlight to a wide 33.9° wash, so the same head can pick a soloist out with a hard-edged pool of light and then open up to cover the full band. On a small rig that range replaces a separate spot and a separate wash — real money saved, and one less fixture to hang, cable and focus on load-in day.
Pan runs 540° and tilt 270°, both on 16-bit scanning, so slow moves stay perfectly smooth instead of visibly stepping. That range covers a whole room from a single hang, so you are not repositioning fixtures mid-show when the band moves downstage. The 16-bit resolution is what you notice on a long fade move under a ballad, where an 8-bit fixture would chatter.
This head speaks RDM, so a compatible console can read and set its address and push firmware updates down the DMX cable you already have run — no laptop balanced on a road case, no separate upload box. It also runs standalone in Auto and Master-Slave modes when nobody is driving a desk, and the LCD touch display with 4 buttons keeps addressing and menu work quick at the back of a dark stage.
One 24-channel personality keeps the patch tidy: 5-pin XLR in and out for DMX, a Tru1 power input, and a 500W LED engine drawing 600W total from AC 100–240V at 50/60Hz. At 23 kg (50.71 lb) it is still a one-person hang from a truss or a lift onto a stand. Single units are $1,499, and every order ships free across the USA on most products with a 2-year warranty and a 30-day return policy.
Moving heads suit rigs that move with the show: clubs and small venues, touring and rental racks, band and theatre stages, corporate events and houses of worship.
| Input power | AC 100–240V |
| Power frequency | 50/60Hz |
| Power consumption | 600W |
| Fuse | 10A |
| LED | 500W LED |
| Average lifespan | 50,000 hours |
| Color wheel | 9 colors + open + CTO + CTB |
| Color mixing | CMY color mixing |
| Beam angle | 4.9°–33.9° |
| Dimming | 0–100% linear dimmer |
| Strobe | 1–25Hz |
| Rotatable gobo wheel | 7 replaceable gobos + open |
| Static gobo wheel | 11 gobos + open |
| Prism 1 | 8-facet rotatable prism |
| Prism 2 | 3-facet rotatable prism |
| Pan | 540°, 16-bit scanning |
| Tilt | 270°, 16-bit scanning |
| Protocol | DMX512 |
| DMX channels | 24CH |
| DMX connector | 5-pin XLR input/output |
| RDM | RDM function and software upload via DMX cable |
| Power connector | Tru1 input |
| Control modes | DMX / Master-Slave / Auto / RDM |
| Display | LCD touch display with 4 buttons |
| IP rating | IP20 — indoor use only |
| Housing color | Black |
| Working ambient temp. | −10°C to 40°C (−14°F to 104°F) |
| Dimensions | 360 × 252 × 711 mm (14 × 9.9 × 27.8 in) |
| Weight | 23 kg (50.71 lb) |
