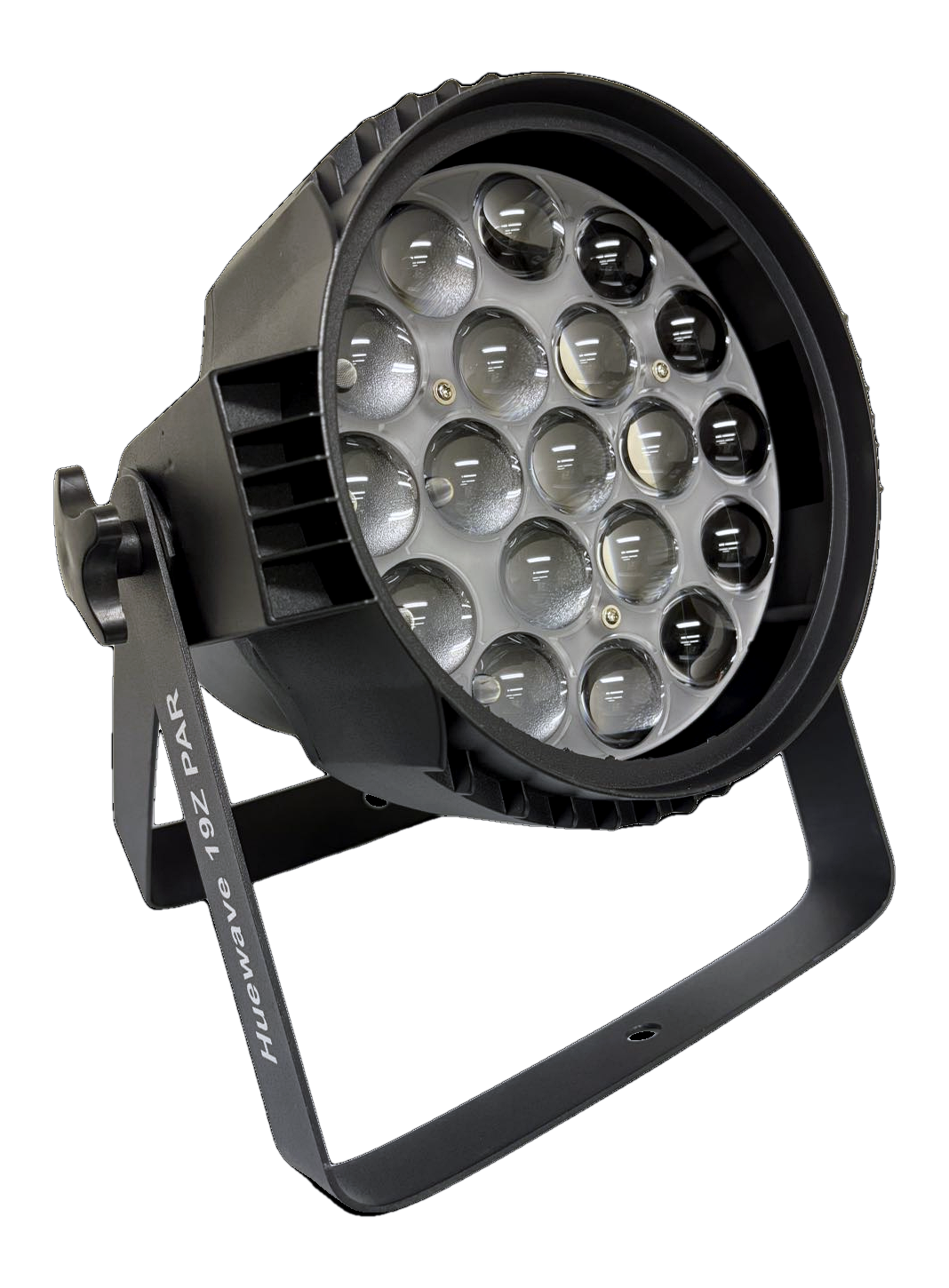

19 × 15W Motorized zoom RGBW PAR bringing a 10°–60° beam, 3-segment pixel control and dual 10 / 18CH DMX to a 4.8 lb body. The HUEWAVE 19Z PAR is a popular choice for karaoke bars, mobile DJ booths and band stages.
From $165.00
| ✔ |
Motorized 10°–60° ZoomOn CH3
Zoom rides a DMX channel, so cues can follow the song instead of the rigger
|
| ✔ |
3-Segment Pixel Control10 / 18CH
Split the face into three zones for inner and outer chases and gradients
|
| ✔ |
19 × 15W RGBW Output4-in-1 LEDs
Real optical power and saturated color from a die-cast body under five pounds
|
| ✔ |
Built-In Programs & Sound-ActiveAuto / Sound / DMX
Run it on its own with the mic triggering the show, or take full control
|
| ✔ |
Daisy-Chain Power And DMX4 Per Carton
Loop the rig together with PowerCon in and out, four fixtures per carton
|
From $165.00
Real motorized zoom — not a screwdriver and a ladder. CH3 sweeps the beam linearly from 10° to 60° in real time, so you can punch a tight spot through a packed floor for the chorus and open it to a full-room colour wash for the slow song. It is the kind of beam control that normally belongs to moving heads, now in a compact fixed PAR.
Three independently controlled LED segments on the macro/zone channel let you build rolling colour chases, split-colour washes and traveling effects. It is the level of movement that usually means adding a pixel bar to the rig — here it is already built into the fixture you were going to buy anyway.
Run 10CH for plug-and-play simplicity: total dimmer, strobe, zoom, RGBW, CTO, colour/effect select and speed. Switch to 18CH when you want the RGBW block split into three separately addressable pixel groups (CH4–CH15), plus CTO, colour select and speed on top. Same fixture, two personalities, no firmware games.
No console on site? No problem. Built-in programs with adjustable speed plus a sound-active mode that locks onto the beat give DJs and bands professional-looking effects straight out of the case — no operator, no programming, no laptop.

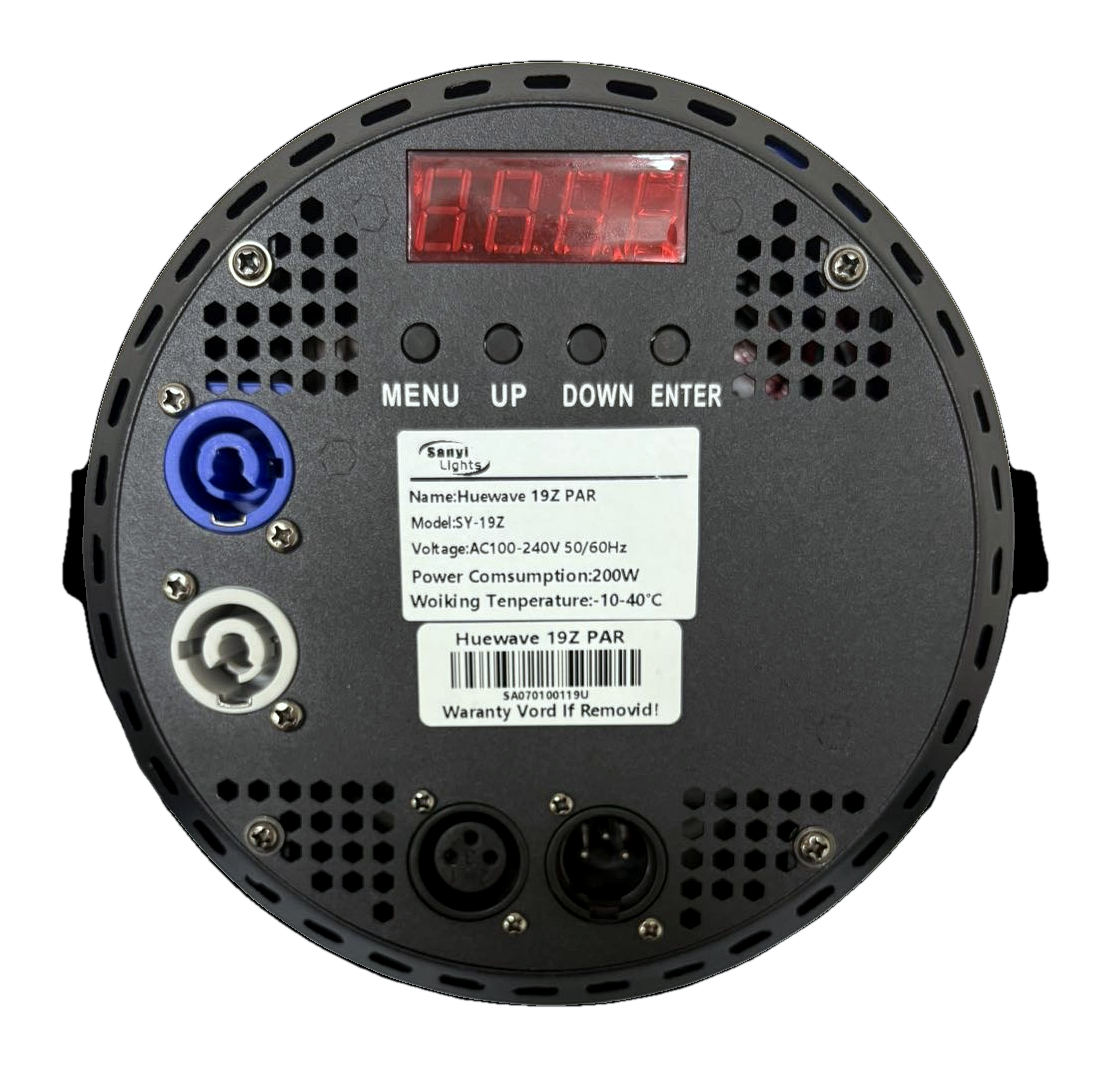

PowerCon In/Out connectors let you daisy-chain multiple units on a single power run. Fewer cables, faster setup, cleaner stage edges. It is the small detail touring crews notice on every single load-in.
At just 4.8 lb (2.18 kg) the die-cast aluminium body goes up on any stand without a second thought, and four fixtures pack into a single 21 lb (9.5 kg) carton — one person, one trip, one case.
DJ booths, karaoke rooms, band stages, weddings and uplighting — anywhere a PAR needs to do more than sit still. Zoom with the moment, chase in sections, and wash the room in saturated RGBW colour.
A compact wash that earns its place wherever the room is small and the rig has to go up fast: karaoke bars and small venues, mobile DJ booths, band stages, wedding receptions and school or church halls.
Real motorized zoom — not a screwdriver and a ladder. CH3 sweeps the beam linearly from 10° to 60° in real time, so you can punch a tight spot through a packed floor for the chorus and open it to a full-room colour wash for the slow song. It is the kind of beam control that normally belongs to moving heads, now in a compact fixed PAR.
Three independently controlled LED segments on the macro/zone channel let you build rolling colour chases, split-colour washes and traveling effects. It is the level of movement that usually means adding a pixel bar to the rig — here it is already built into the fixture you were going to buy anyway.
Run 10CH for plug-and-play simplicity: total dimmer, strobe, zoom, RGBW, CTO, colour/effect select and speed. Switch to 18CH when you want the RGBW block split into three separately addressable pixel groups (CH4–CH15), plus CTO, colour select and speed on top. Same fixture, two personalities, no firmware games.
No console on site? No problem. Built-in programs with adjustable speed plus a sound-active mode that locks onto the beat give DJs and bands professional-looking effects straight out of the case — no operator, no programming, no laptop.
PowerCon In/Out connectors let you daisy-chain multiple units on a single power run. Fewer cables, faster setup, cleaner stage edges. It is the small detail touring crews notice on every single load-in.
At just 4.8 lb (2.18 kg) the die-cast aluminium body goes up on any stand without a second thought, and four fixtures pack into a single 21 lb (9.5 kg) carton — one person, one trip, one case.
DJ booths, karaoke rooms, band stages, weddings and uplighting — anywhere a PAR needs to do more than sit still. Zoom with the moment, chase in sections, and wash the room in saturated RGBW colour.
A compact wash that earns its place wherever the room is small and the rig has to go up fast: karaoke bars and small venues, mobile DJ booths, band stages, wedding receptions and school or church halls.
| Input power | AC 100–240V, 50/60 Hz |
| Power consumption | ~200W max |
| Power connection | PowerCon In & Out (daisy-chainable) |
| Voltage range | Universal — works on US and EU mains |
| LED | 19 × 15W RGBW 4-in-1 |
| Average lifespan | 50,000 hours |
| Colour mixing | Full RGBW, 0–255 per channel |
| Beam angle | 10°–60° linear motorized zoom |
| Zoom control | DMX CH3 (small → large) |
| Dimming | 0–100% linear dimming |
| Strobe | Electronic, 1–20 Hz variable |
| Pixel control | 3-segment (macro/zone channel) |
| Built-in programs | With adjustable speed control |
| Preset effects | Colour macros / gradient / pulse |
| Protocol | DMX512 |
| DMX channels | 10 CH / 18 CH (switchable) |
| Operating modes | DMX / Auto / Sound-Active |
| Manual control | Display with backlit keys |
| Housing | Die-cast aluminium |
| Colour | Matte black |
| Application | Indoor use only |
| Net weight | 4.8 lb (2.18 kg) |
| Packaging | 4 pcs per carton |
| Carton weight | 21 lb (9.5 kg) |
10CH mode keeps programming fast and simple. 18CH mode expands the RGBW block into three independently addressable pixel segments for section-by-section chases and split-colour washes.
| CH | Function | Value |
|---|---|---|
| CH1 | Total dimmer | 0–255 |
| CH2 | Strobe 1–20 Hz | 0–255 |
| CH3 | Zoom / spot angle (small→large) | 0–255 |
| CH4 | Red | 0–255 |
| CH5 | Green | 0–255 |
| CH6 | Blue | 0–255 |
| CH7 | White | 0–255 |
| CH8 | CTO | 0–255 |
| CH9 | Colour / effect select | 0–15 no function … |
| CH10 | Speed (slow→fast) | 0–255 |
| CH | Function | Value |
|---|---|---|
| CH1 | Total dimmer | 0–255 |
| CH2 | Strobe 1–20 Hz | 0–255 |
| CH3 | Zoom / spot angle (small→large) | 0–255 |
| CH4 | Red — segment 1 | 0–255 |
| CH5 | Green — segment 1 | 0–255 |
| CH6 | Blue — segment 1 | 0–255 |
| CH7 | White — segment 1 | 0–255 |
| CH8 | Red — segment 2 | 0–255 |
| CH9 | Green — segment 2 | 0–255 |
| CH10 | Blue — segment 2 | 0–255 |
| CH11 | White — segment 2 | 0–255 |
| CH12 | Red — segment 3 | 0–255 |
| CH13 | Green — segment 3 | 0–255 |
| CH14 | Blue — segment 3 | 0–255 |
| CH15 | White — segment 3 | 0–255 |
| CH16 | CTO | 0–255 |
| CH17 | Colour / effect select | 0–15 no function … |
| CH18 | Speed (slow→fast) | 0–255 |
