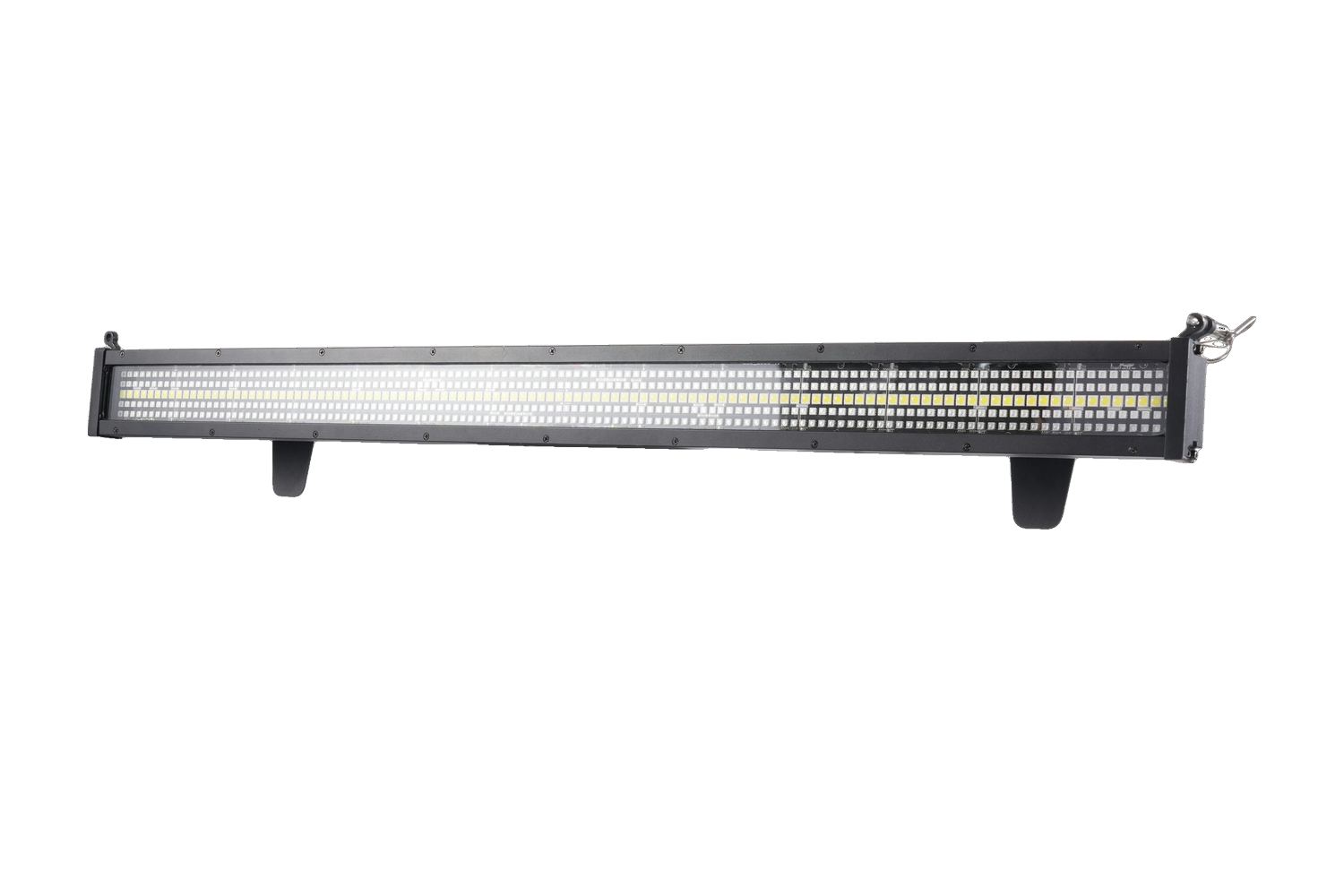

IP65 Outdoor linear pixel bar with 504 × 0.3W RGB and 122 × 1W White LEDs, 28 + 14 individually controllable zones. The PULSARIS BAR 720B IP is a popular choice for club and bar walls, DJ booths and outdoor decks.
$2,500.00
| ✔ |
IP65-Rated HousingIP65
Locking outdoor power and DMX — rain, dust and haze stay outside
|
| ✔ |
Dual Light Source504 RGB + 122 White
0.3W RGB and 1W white LEDs in one 1042 mm bar, together or on their own
|
| ✔ |
Individual Pixel Control28 + 14 zones
Every color and white zone addresses on its own — chases, splits, layered looks
|
| ✔ |
4 DMX Channel Modes4 / 17 / 56 / 98CH
Change the mode instead of stocking another fixture, with RDM on the line
|
| ✔ |
Slim Linear Chassis4.6 kg · 1042 mm
Light enough to fly on any truss, long enough to read as one line of light
|
Shop by use case: Club & Bar · IP65 Outdoor Rated · Pixel Bar · Special Event
$2,500.00
The 720B IP carries an IP65 rating with waterproof power and DMX connectors, which means outdoor concerts, stage sets, building facades and rental fleets can leave it rigged through rain, dust and haze. That changes the economics of an outdoor run: no nightly strike-and-store, no scramble when the forecast turns, and no separate weatherproof enclosure to buy and hang.
504 × 0.3W RGB LEDs handle saturated color while 122 × 1W White LEDs deliver high-brightness white output. Run them together for color-plus-white looks, or use the white array on its own where crisp, punchy illumination is what the camera and the audience need. It is effectively a color bar and a white bar in the same 1042 mm housing.
28 RGB segments and 14 white segments are independently controllable. Build horizontal chases, split-color bands, audience-facing effects and layered looks that a single-source bar cannot produce, all with smooth 0–100% linear dimming and a multi-effect strobe. The white zones sitting alongside the color zones is what lets you keep a clean white line while color moves across it.
The 4CH mode is a simple dimmer, strobe and color-macro workhorse for basic scenes. The default 17CH adds RGB, white, four color zones, two white zones, program, auto speed and a reset/function channel. 56CH and 98CH address every zone individually for full pixel mapping across the bar — scale the personality to the job rather than the other way around.
RDM support lets you set addresses, read status and configure fixtures remotely over the DMX line. On a facade install or a festival rig where bars hang above the stage or across a building, that is the difference between a five-minute change and a lift rental. It also makes fault-finding on a large fleet a console task instead of a site visit.
At 1042 × 123 × 107 mm and only 4.6 kg, the bar rigs quickly on truss, walls or floor plates, which makes it practical for both permanent outdoor installs and weekly touring. The LEDs are rated for 20,000 hours, and the aluminum housing takes the knocks of a working rental fleet.
You can start with a short run over a stage, and the CASE OF 10PCS at $2,500 is the practical way to cover a whole facade or a festival stage in one purchase. Every order includes free USA shipping on most products, a 2-year warranty and a 30-day return policy.
Linear bars do the heavy lifting where a wall of light matters: club and bar walls, DJ booths, small venue stages and wedding backdrops — with the IP rating to stay outside on patios and outdoor decks.
The 720B IP carries an IP65 rating with waterproof power and DMX connectors, which means outdoor concerts, stage sets, building facades and rental fleets can leave it rigged through rain, dust and haze. That changes the economics of an outdoor run: no nightly strike-and-store, no scramble when the forecast turns, and no separate weatherproof enclosure to buy and hang.
504 × 0.3W RGB LEDs handle saturated color while 122 × 1W White LEDs deliver high-brightness white output. Run them together for color-plus-white looks, or use the white array on its own where crisp, punchy illumination is what the camera and the audience need. It is effectively a color bar and a white bar in the same 1042 mm housing.
28 RGB segments and 14 white segments are independently controllable. Build horizontal chases, split-color bands, audience-facing effects and layered looks that a single-source bar cannot produce, all with smooth 0–100% linear dimming and a multi-effect strobe. The white zones sitting alongside the color zones is what lets you keep a clean white line while color moves across it.
The 4CH mode is a simple dimmer, strobe and color-macro workhorse for basic scenes. The default 17CH adds RGB, white, four color zones, two white zones, program, auto speed and a reset/function channel. 56CH and 98CH address every zone individually for full pixel mapping across the bar — scale the personality to the job rather than the other way around.
RDM support lets you set addresses, read status and configure fixtures remotely over the DMX line. On a facade install or a festival rig where bars hang above the stage or across a building, that is the difference between a five-minute change and a lift rental. It also makes fault-finding on a large fleet a console task instead of a site visit.
At 1042 × 123 × 107 mm and only 4.6 kg, the bar rigs quickly on truss, walls or floor plates, which makes it practical for both permanent outdoor installs and weekly touring. The LEDs are rated for 20,000 hours, and the aluminum housing takes the knocks of a working rental fleet.
You can start with a short run over a stage, and the CASE OF 10PCS at $2,500 is the practical way to cover a whole facade or a festival stage in one purchase. Every order includes free USA shipping on most products, a 2-year warranty and a 30-day return policy.
Linear bars do the heavy lifting where a wall of light matters: club and bar walls, DJ booths, small venue stages and wedding backdrops — with the IP rating to stay outside on patios and outdoor decks.
| Input power | AC 100–240V, 50/60Hz |
| Power consumption | 180W Max |
| Connectors | Waterproof power & DMX connectors |
| LED | 504 × 0.3W RGB + 122 × 1W White |
| Zones | 28 RGB segments + 14 white segments, independently controllable |
| Average lifespan | 20,000 hours |
| Dimming | 0–100% linear |
| Strobe | 1S/25 with multiple effects |
| Protocol | DMX512 + RDM |
| DMX channels | 4 / 17 / 56 / 98 CH (17CH default) |
| 17CH layout | Master dimmer, strobe, color macro, color speed, RGBW, 4 color zones, 2 white zones, program, auto speed, reset |
| Protection | IP65 — outdoor use |
| Housing | Aluminum |
| Dimensions | 1042 × 123 × 107 mm |
| Net weight | 4.6 kg |
