LED Gobo Spot | 80W 9500K With RGB Halo Ring | SANYI LIGHTS
+1 626-408-8003

California, USA

15% OFF

SPOTTY LED 90

SPL-LED-90SPOT

80W · 9500K Gobo spot with an RGB halo ring running a 3-facet prism and 3 metal plus 2 glass gobos over a 15° beam. The SPOTTY LED 90 is a popular choice for clubs, theatre stages and touring rigs.

From $229.00

✔
80W At 9500KCool, Clean White
A crisp daylight-cool white that reads as a spot rather than a wash
✔
Two Gobo Types On One Wheel3 Metal + 2 Glass
Metal for hard logos, glass for softer projected texture
✔
A Halo Ring That Adds Depth12 × RGB LEDs
Color around the main beam, addressed separately from the spot itself
✔
3-Facet Prism Plus Fast Strobe1–25Hz
Beam multiplication on command, with a strobe range for accents
✔
3.9 kg, 14CH$909 For Four
Light enough to hang in banks, patched on a single 14-channel personality

Shop by use case: Club & Bar · Mobile DJ · Special Event

In stock · Ships within 1-2 business days

Checkout safely using your preferred payment method

From:

From $229.00

Main Features

An 80W, 9500K spot with a 3-facet prism, three metal and two glass gobos, a 12-LED RGB halo ring and a tight 15° beam — $229 a fixture, or $909 for the box of four.

80W At 9500K — A Cool, Clean White

The 90SPOT runs a single 80W LED at a 9500K color temperature, which is a notably cool white. That reads as crisp and clinical on stage or in a club rather than warm and amber, so it cuts through colored wash lighting and separates a performer from the backdrop. Output is concentrated into a 15° beam, which means the punch lands where you point it instead of spilling across the room.

Two Gobo Types On One Wheel

The gobo wheel carries three metal gobos and two glass gobos. Metal gobos give you sharp, hard-edged patterns for classic beam look, while glass gobos project far finer detail and are the ones to reach for when you want a recognisable shape or texture on a wall. Having both on the same wheel means one fixture covers the broad stroke and the detailed projection instead of you choosing between them at purchase.

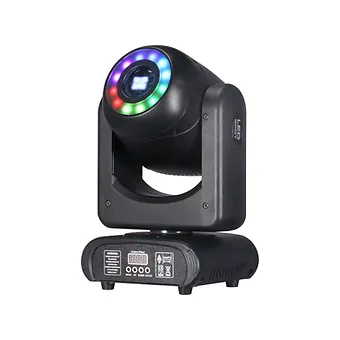

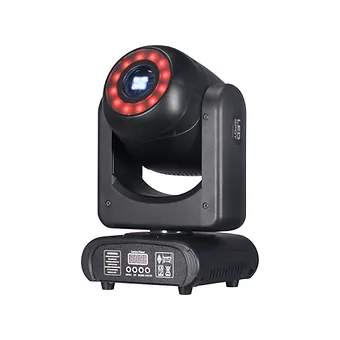

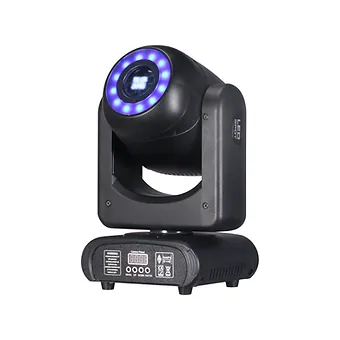

A Halo Ring That Adds Depth

Twelve RGB LEDs form a halo ring around the main beam, giving you a completely independent layer of color. You can hold the spot in white and put a slow color drift in the ring, or match the ring to the spot for a solid mass of color. It reads as depth on stage — the eye sees a bright source with a colored aura rather than a flat white circle.

3-Facet Prism Plus A Fast Strobe

A 3-facet rotating prism multiplies the single beam into three rotating beams, which is the classic trick for filling the air above a crowd with moving light. Paired with a strobe adjustable from 1–25Hz, the fixture goes from a slow atmospheric pulse to hard stabs on the beat. Both effects are built in, so there is nothing extra to buy or hang.

540° Pan, 270° Tilt, 14CH

Movement covers 540° pan and 270° tilt at 8 or 16-bit resolution, and the whole fixture runs on 14 DMX channels — a short patch that leaves room on the console. DMX, Master-Slave, Auto and Sound modes are all built in, so the fixture works whether you are driving it from a desk, slaving it to another unit, or letting it run itself on sound at a party.

7 Colors, Set From A 4-Button Display

The color wheel carries seven colors plus open, so you have full white and a usable palette without gels. Setup is handled from an LED color display with four buttons, which is fast to read in a dark venue and simple enough that adding a fixture mid-show does not need a manual. At 3.9 kg (8.6 lb) it hangs without needing two people or a special bracket.

Four For $909 — A Show In One Box

The BOX OF 4PCS at $909 gives you four fixtures and a usable set for a small stage, a club corner or a mobile rig immediately. Mains input is AC 100–240V, 50/60Hz with a 95W draw and a 5A fuse, the LEDs are rated for 50,000 hours, and every order includes free USA shipping on most products, a 2-year warranty and a 30-day return policy.

WHO IT’S BUILT FOR

Clubs and bars
A tight 15° beam at 9500K cuts through a colored wash and picks out the performance area from the back of the room. The prism and strobe cover the peak moments, and the halo ring keeps some ambient color running underneath so the stage never goes flat between cues.
Mobile DJs and party rigs
At 3.9 kg it hangs from any stand or truss without a second pair of hands, and the Sound and Auto modes mean the fixture runs itself while you work the booth. The BOX OF 4PCS at $909 gives a four-head rig in one purchase, which is the practical minimum for covering a dance floor.
Live events and concert stages
Gobo patterns on a backdrop, a prism for aerial effects and a hard strobe on the drop — all from a 14-channel fixture that leaves the rest of the console free. The glass gobos are the ones to use when the projection needs to read as an actual image rather than a texture.
Venues and rental stock
One SKU covers spot, gobo projection, color and ambient halo effects, which keeps the shelf lean and the service simple. Pan and tilt at 16-bit resolution return to the same position show after show, and the 4-button display makes re-addressing on site quick for whoever picks the units up.
Indoor use only
The SPOTTY LED 90 carries an IP20 rating and is built for stages, clubs and indoor venues. For outdoor or weather-exposed events, choose an IP65-rated fixture from our outdoor range instead.

Where It Fits

Moving heads suit rigs that move with the show: clubs and small venues, touring and rental racks, band and theatre stages, corporate events and houses of worship.

FREQUENTLY ASKED QUESTIONS

What makes the SPOTTY LED 90 different from a basic gobo spot?
Two things: two types of gobo on the same wheel, and an independent color layer. The wheel carries three metal gobos for sharp patterns and two glass gobos for detailed projections, and a separate 12-LED RGB halo ring surrounds the main beam. Add the 3-facet rotating prism and the 15° beam and you have a fixture that covers pattern, aerial effect and ambient color in one unit.
How many SPOTTY LED 90 fixtures do I need?
Two covers a small stage or a pair of projection positions at $229 each. Four is the usual rig for a club corner or a mobile DJ setup and is exactly what the BOX OF 4PCS at $909 provides — four fixtures and one delivery instead of four.
Do I need a DMX controller to run it?
No. DMX, Master-Slave, Auto and Sound modes are all built in, so the fixture runs a usable show on its own or slaved to another unit. Connect a controller when you want the gobo wheel, color wheel, prism and halo ring all under your fingers on the 14-channel map.
What is the halo ring actually for?
It is a separate ring of 12 RGB LEDs around the main beam, on its own color control. That gives you an ambient color layer around a white spot, a color that drifts independently of the main beam, or a match to the spot for a solid mass of color. It is the difference between a flat white circle and a light with depth.
Can I use it outdoors?
No. The SPOTTY LED 90 is IP20-rated for indoor use — clubs, stages, theatres and covered venues. For outdoor or weather-exposed events, choose an IP65-rated fixture from our outdoor range instead.
How is it powered and connected?
It runs on AC 100–240V, 50/60Hz with a 95W power consumption and a 5A fuse, so it works on US and European mains. Power is an IEC input and DMX is 3-pin XLR in/out, and the LED color display with four buttons handles addressing and setup on site.
Will it hold up to regular use?
Yes. The 80W LED is rated for 50,000 hours, so a busy weekend schedule uses a small fraction of its life, and at 3.9 kg (8.6 lb) it is easy to handle without risking damage on load-in. Every order includes free USA shipping on most products, a 2-year warranty and a 30-day return policy.

Everything you need for the SPOTTY LED 90
The user manual, the technical specification sheet and the DMX fixture profile for the SPOTTY LED 90 — one folder, three files.
USER'S MANUAL  ·  TECHNICAL SPECIFICATIONS  ·  FIXTURE'S PROFILE
Building a full rig?
The Download Center holds every SANYI LIGHTS fixture profile in one place — grab the whole set instead of one by one.
Open the Download Center →

Free shipping on most products across the USA — plus a 2-year warranty and a 30-day return policy on every order.

Designed for Creators.

Built for the Stage.

High Output

Performance

RGBW Color

System

DMX & Wireless
Control

Venue-Ready

Build

Plug & Play

Simplicity

Overview

This compact and powerful fixture is engineered for performers who demand precision and impact. With crystal-clear output, seamless wireless control and reliable DMX integration, it’s the go-to lighting solution for professionals on the move.

Perfect For

Overview

This compact and powerful fixture is engineered for performers who demand precision and impact. With crystal-clear output, seamless wireless control and reliable DMX integration, it’s the go-to lighting solution for professionals on the move.

Creator insinght

customer reviews

Overview

This compact and powerful fixture is engineered for performers who demand precision and impact. With crystal-clear output, seamless wireless control and reliable DMX integration, it’s the go-to lighting solution for professionals on the move.

Creator Insight

Customer
Reviews

Specifications & Features

Main Features

An 80W, 9500K spot with a 3-facet prism, three metal and two glass gobos, a 12-LED RGB halo ring and a tight 15° beam — $229 a fixture, or $909 for the box of four.

80W At 9500K — A Cool, Clean White

The 90SPOT runs a single 80W LED at a 9500K color temperature, which is a notably cool white. That reads as crisp and clinical on stage or in a club rather than warm and amber, so it cuts through colored wash lighting and separates a performer from the backdrop. Output is concentrated into a 15° beam, which means the punch lands where you point it instead of spilling across the room.

Two Gobo Types On One Wheel

The gobo wheel carries three metal gobos and two glass gobos. Metal gobos give you sharp, hard-edged patterns for classic beam look, while glass gobos project far finer detail and are the ones to reach for when you want a recognisable shape or texture on a wall. Having both on the same wheel means one fixture covers the broad stroke and the detailed projection instead of you choosing between them at purchase.

A Halo Ring That Adds Depth

Twelve RGB LEDs form a halo ring around the main beam, giving you a completely independent layer of color. You can hold the spot in white and put a slow color drift in the ring, or match the ring to the spot for a solid mass of color. It reads as depth on stage — the eye sees a bright source with a colored aura rather than a flat white circle.

3-Facet Prism Plus A Fast Strobe

A 3-facet rotating prism multiplies the single beam into three rotating beams, which is the classic trick for filling the air above a crowd with moving light. Paired with a strobe adjustable from 1–25Hz, the fixture goes from a slow atmospheric pulse to hard stabs on the beat. Both effects are built in, so there is nothing extra to buy or hang.

540° Pan, 270° Tilt, 14CH

Movement covers 540° pan and 270° tilt at 8 or 16-bit resolution, and the whole fixture runs on 14 DMX channels — a short patch that leaves room on the console. DMX, Master-Slave, Auto and Sound modes are all built in, so the fixture works whether you are driving it from a desk, slaving it to another unit, or letting it run itself on sound at a party.

7 Colors, Set From A 4-Button Display

The color wheel carries seven colors plus open, so you have full white and a usable palette without gels. Setup is handled from an LED color display with four buttons, which is fast to read in a dark venue and simple enough that adding a fixture mid-show does not need a manual. At 3.9 kg (8.6 lb) it hangs without needing two people or a special bracket.

Four For $909 — A Show In One Box

The BOX OF 4PCS at $909 gives you four fixtures and a usable set for a small stage, a club corner or a mobile rig immediately. Mains input is AC 100–240V, 50/60Hz with a 95W draw and a 5A fuse, the LEDs are rated for 50,000 hours, and every order includes free USA shipping on most products, a 2-year warranty and a 30-day return policy.

WHO IT’S BUILT FOR

Clubs and bars
A tight 15° beam at 9500K cuts through a colored wash and picks out the performance area from the back of the room. The prism and strobe cover the peak moments, and the halo ring keeps some ambient color running underneath so the stage never goes flat between cues.
Mobile DJs and party rigs
At 3.9 kg it hangs from any stand or truss without a second pair of hands, and the Sound and Auto modes mean the fixture runs itself while you work the booth. The BOX OF 4PCS at $909 gives a four-head rig in one purchase, which is the practical minimum for covering a dance floor.
Live events and concert stages
Gobo patterns on a backdrop, a prism for aerial effects and a hard strobe on the drop — all from a 14-channel fixture that leaves the rest of the console free. The glass gobos are the ones to use when the projection needs to read as an actual image rather than a texture.
Venues and rental stock
One SKU covers spot, gobo projection, color and ambient halo effects, which keeps the shelf lean and the service simple. Pan and tilt at 16-bit resolution return to the same position show after show, and the 4-button display makes re-addressing on site quick for whoever picks the units up.
Indoor use only
The SPOTTY LED 90 carries an IP20 rating and is built for stages, clubs and indoor venues. For outdoor or weather-exposed events, choose an IP65-rated fixture from our outdoor range instead.

Where It Fits

Moving heads suit rigs that move with the show: clubs and small venues, touring and rental racks, band and theatre stages, corporate events and houses of worship.

FREQUENTLY ASKED QUESTIONS

What makes the SPOTTY LED 90 different from a basic gobo spot?
Two things: two types of gobo on the same wheel, and an independent color layer. The wheel carries three metal gobos for sharp patterns and two glass gobos for detailed projections, and a separate 12-LED RGB halo ring surrounds the main beam. Add the 3-facet rotating prism and the 15° beam and you have a fixture that covers pattern, aerial effect and ambient color in one unit.
How many SPOTTY LED 90 fixtures do I need?
Two covers a small stage or a pair of projection positions at $229 each. Four is the usual rig for a club corner or a mobile DJ setup and is exactly what the BOX OF 4PCS at $909 provides — four fixtures and one delivery instead of four.
Do I need a DMX controller to run it?
No. DMX, Master-Slave, Auto and Sound modes are all built in, so the fixture runs a usable show on its own or slaved to another unit. Connect a controller when you want the gobo wheel, color wheel, prism and halo ring all under your fingers on the 14-channel map.
What is the halo ring actually for?
It is a separate ring of 12 RGB LEDs around the main beam, on its own color control. That gives you an ambient color layer around a white spot, a color that drifts independently of the main beam, or a match to the spot for a solid mass of color. It is the difference between a flat white circle and a light with depth.
Can I use it outdoors?
No. The SPOTTY LED 90 is IP20-rated for indoor use — clubs, stages, theatres and covered venues. For outdoor or weather-exposed events, choose an IP65-rated fixture from our outdoor range instead.
How is it powered and connected?
It runs on AC 100–240V, 50/60Hz with a 95W power consumption and a 5A fuse, so it works on US and European mains. Power is an IEC input and DMX is 3-pin XLR in/out, and the LED color display with four buttons handles addressing and setup on site.
Will it hold up to regular use?
Yes. The 80W LED is rated for 50,000 hours, so a busy weekend schedule uses a small fraction of its life, and at 3.9 kg (8.6 lb) it is easy to handle without risking damage on load-in. Every order includes free USA shipping on most products, a 2-year warranty and a 30-day return policy.

Technical Specification — SPL-LED-90SPOT

Full factory specification for the SPOTTY LED 90 (SPL-LED-90SPOT). The gobo wheel carries three metal and two glass gobos, with a 12-LED RGB halo ring around the main beam.
Electrical
Input powerAC 100–240V
Power frequency50/60Hz
Power consumption95W
Fuse5A
Voltage rangeUniversal — works on US and EU mains
Light Source
Source80W LED
CCT9500K
Halo ring12 pcs RGB LED
Average lifespan50,000 hours
Color System
Color wheel7 colors + open
Dimming & Strobe
Dimming0–100% linear dimmer
Strobe1–25Hz
Optics
Beam angle15°
Effects
Prism3-facet
Gobo wheel3 metal gobos + 2 glass gobos
Color7 colors + open
Motion
Pan540°, 8/16-bit scanning
Tilt270°, 8/16-bit scanning
Control
DMX channels14CH

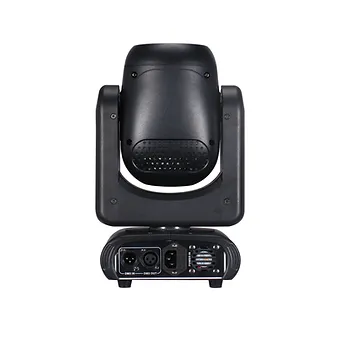

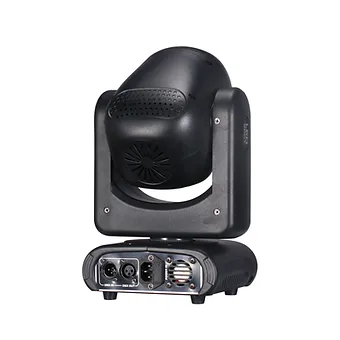

DMX connector3-pin XLR input/output
Power connectorIEC power input
Control modesDMX / Master-Slave / Auto / Sound
DisplayLED color display with 4 buttons
Housing & Physical
IP ratingIP20 — indoor use only
Housing colorBlack
Working ambient temp.−10°C to 40°C (−14°F to 104°F)
Dimensions210 × 170 × 340 mm (8.3 × 6.7 × 13.4 in)
Weight3.9 kg (8.6 lb)
Everything you need for the SPOTTY LED 90
The user manual, the technical specification sheet and the DMX fixture profile for the SPOTTY LED 90 — one folder, three files.
USER'S MANUAL  ·  TECHNICAL SPECIFICATIONS  ·  FIXTURE'S PROFILE
Building a full rig?
The Download Center holds every SANYI LIGHTS fixture profile in one place — grab the whole set instead of one by one.
Open the Download Center →

SEE HOW IT WORKS
