LED Strobe Bar | 864 RGB + 96 White LEDs, 39CH | SANYI
+1 626-408-8003

California, USA

15% OFF

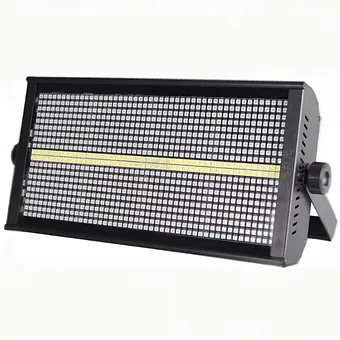

PULSARIS 960B

SPL-LED-960B

864 + 96 RGB and white strobe bar split into 8 color and 8 white zones, with 84 RGB and 41 white strobe presets at 120°. The PULSARIS 960B is a popular choice for club drops, band peaks and party moments.

From $149.00

✔
Two Lights In One HousingEffect + Strobe
A color bar and a dedicated white strobe — the truck carries one SKU
✔
Eight RGB Zones, Eight White ZonesIndependently Controlled
Chases and strobe patterns travel across the bar rather than firing as one block
✔
84 RGB + 41 White PresetsAlready Built In
A deep preset library for nights with no programming window at all
✔
Four DMX Personalities4 / 11 / 32 / 39CH
One bar spans a quick patch and detailed zone-by-zone control
✔
3.6 kg, 165WShips 4 To A Box
Light enough to fly in banks and to carry, at a useful power draw

Shop by use case: Club & Bar · Mobile DJ · Special Event

In stock · Ships within 1-2 business days

Checkout safely using your preferred payment method

From:

From $149.00

Main Features

A 165W RGB + white strobe with 864 SMD5050 RGB LEDs and 96 dedicated white LEDs, split into 8 RGB and 8 white zones, with 84 RGB macros, 41 white strobe effects and a 120° beam — an effect light and a white strobe in one box.

Two Lights In One Housing

Most strobes do one thing: they flash white. The PULSARIS 960B carries 864 RGB SMD5050 LEDs for color effects and a separate bank of 96 white SMD5050 LEDs for the strobe hit, which means you can run a moving color wash across the 8 RGB zones while the 8 white zones punch through it on the beat. That layered look is normally two fixtures and two DMX addresses — here it is one unit at 3.6 kg.

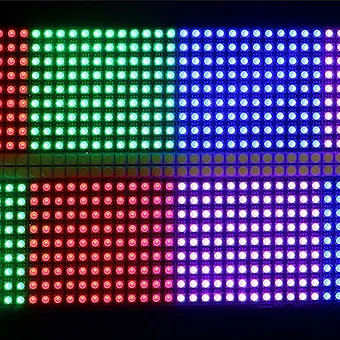

Eight RGB Zones, Eight White Zones

Each of the 8 RGB sections and each of the 8 white sections can be driven individually, so a chasing pattern can travel down the bar, reverse, or split into blocks of color while the white strobe fires in a different rhythm. For a DJ running a floor, that is the difference between a bar that sits there and a bar that reads as movement from the back of the room.

Macros That Are Already Built In

84 RGB macro effects and 41 white LED strobe effects ship inside the fixture, covering chasing, rotation and racing patterns. On a one-nighter you can pull up a preset and look programmed without touching a cue list — useful when the desk is also running your moving heads and you have no spare time before doors.

Four DMX Personalities, From 4CH To 39CH

Patch it as 4CH when you want a quick effect on a crowded universe, step up through 11CH and 32CH as your rig and your patience allow, or open all 39CH for full control over every RGB and white section. The same fixture, four levels of detail, switchable from the menu — no different SKU to buy when the show gets bigger.

120° Beam — Cover The Room With Fewer Units

The 120° beam angle throws a wide, even field of light rather than a narrow spot, so a pair of PULSARIS 960B units will wash a mid-sized stage or dance floor corner to corner. Fewer fixtures means fewer DMX addresses, less cable and a faster load-out at the end of the night.

Master-Slave, Auto And Sound — No Console Needed

DMX is there when you have a controller, but the PULSARIS 960B also runs in Master-Slave, Auto and Sound-Active mode. Great for a bar that wants the lights moving on the music without paying an operator: set the addressing once, switch to sound activation and let the room drive the show.

165W And A 50,000-Hour LED Life

Pulling 165W on universal AC100–240V mains, the fixture runs cool and light on power, so you can hang several on one circuit. The LEDs are rated for 50,000 hours of average life — that is years of weekend work before you think about replacement, and it is the reason this unit suits rental stock rather than one-off events.

WHO IT’S BUILT FOR

Mobile DJs and club floors
The 8 RGB plus 8 white zone layout is built for the moment the beat drops: color washing across the bar while the white strobe hits on top. Sound-Active mode lets you leave it running hands-free, and at 3.6 kg (7.94 lb) two units fit in a car boot with the rest of your rig.
Nightclubs and bars
Mounted across a ceiling run, the 120° beam covers the floor with few units, and the built-in macros keep the look changing all night without an operator. PowerCon in/out lets you daisy-chain several fixtures on one power run, which matters when the ceiling has two sockets and you need six lights.
Theatres and live productions
The 39-channel personality exposes every RGB and white section separately, so a lighting designer can build layered strobe-and-color looks rather than a single effect. Chase, rotation and racing macros give you a starting point that you can then refine cue by cue.
Rental houses and event production
One SKU that covers color effect duty and white strobe duty keeps the shelf simpler and the truck lighter. The BOX OF 4PCS at $596 lands at $149 per unit, so four fixtures cost the same as four singles while shipping as one box — which is how rental stock actually travels.
Indoor use only
The PULSARIS 960B carries an IP20 rating and is built for stages, clubs, theatres and covered venues. For outdoor or weather-exposed events, choose an IP65-rated fixture from our outdoor range instead.

Where It Fits

Strobes and effect bars are the punctuation of the night: club drops, band peaks, DJ booths, small venue shows and party moments.

FREQUENTLY ASKED QUESTIONS

How is the PULSARIS 960B different from a standard LED strobe?
A standard strobe only fires white. The PULSARIS 960B carries 864 SMD5050 RGB LEDs and 96 white SMD5050 LEDs in the same housing, arranged as 8 RGB sections and 8 white sections. You get a color effect bar and a white strobe in one fixture, and you can run both at once — color chasing underneath, white hitting on top.
How many PULSARIS 960B units will I need?
For a small dance floor, two units placed either side cover the room at the 120° beam angle. For a mid-sized stage or club floor, four is the usual number, and that is exactly how the BOX OF 4PCS ships at $596 — $149 per fixture, the same as buying a single. Larger rooms generally step up to six or eight across a ceiling run.
Do I need a DMX controller to run it?
No. The fixture runs in Master-Slave, Auto and Sound-Active mode with nothing attached — plug in, choose a mode, and the 84 RGB macros and 41 white strobe effects are available immediately. Adding a DMX console unlocks the 4/11/32/39CH personalities and lets you build your own looks instead of using the presets.
Which DMX personality should I use?
4CH is the compact setting for a quick effect on a crowded universe. 11CH and 32CH sit in between for more section control. 39CH opens everything — every one of the 8 RGB and 8 white zones addressed separately — which is what you want for layered, programmed strobe looks. All four live in the same fixture.
Can I use it outdoors?
No. The PULSARIS 960B is IP20-rated for indoor use — clubs, stages, theatres, houses of worship and covered venues. For outdoor or weather-exposed events, choose an IP65-rated fixture from our outdoor range instead.
How is it powered and how does it ship?
It runs on universal AC100–240V, 50/60Hz, drawing 165W, and uses PowerCon in/out for daisy-chaining plus 3-pin XLR for DMX. At 3.6 kg (7.94 lb) and 448 × 210 × 175 mm, four units box together well. Every order includes free USA shipping on most products, a 2-year warranty and a 30-day return policy.
Will it hold up to regular weekend shows?
Yes. The LEDs are rated for 50,000 hours of average life, which is far beyond the hours a working DJ or club fixture sees in a decade. Power draw is a modest 165W, strobe runs 1–25Hz and dimming is fully linear from 0–100%, so the fixture is engineered for repeat load-ins rather than one season.

Everything you need for the PULSARIS 960B
The user manual, the technical specification sheet and the DMX fixture profile for the PULSARIS 960B — one folder, three files.
USER'S MANUAL  ·  TECHNICAL SPECIFICATIONS  ·  FIXTURE'S PROFILE
Building a full rig?
The Download Center holds every SANYI LIGHTS fixture profile in one place — grab the whole set instead of one by one.
Open the Download Center →

Free shipping on most products across the USA — plus a 2-year warranty and a 30-day return policy on every order.

Designed for Creators.

Built for the Stage.

High Output

Performance

RGBW Color

System

DMX & Wireless
Control

Venue-Ready

Build

Plug & Play

Simplicity

Overview

This compact and powerful fixture is engineered for performers who demand precision and impact. With crystal-clear output, seamless wireless control and reliable DMX integration, it’s the go-to lighting solution for professionals on the move.

Perfect For

Overview

This compact and powerful fixture is engineered for performers who demand precision and impact. With crystal-clear output, seamless wireless control and reliable DMX integration, it’s the go-to lighting solution for professionals on the move.

Creator insinght

customer reviews

Overview

This compact and powerful fixture is engineered for performers who demand precision and impact. With crystal-clear output, seamless wireless control and reliable DMX integration, it’s the go-to lighting solution for professionals on the move.

Creator Insight

Customer
Reviews

Specifications & Features

Main Features

A 165W RGB + white strobe with 864 SMD5050 RGB LEDs and 96 dedicated white LEDs, split into 8 RGB and 8 white zones, with 84 RGB macros, 41 white strobe effects and a 120° beam — an effect light and a white strobe in one box.

Two Lights In One Housing

Most strobes do one thing: they flash white. The PULSARIS 960B carries 864 RGB SMD5050 LEDs for color effects and a separate bank of 96 white SMD5050 LEDs for the strobe hit, which means you can run a moving color wash across the 8 RGB zones while the 8 white zones punch through it on the beat. That layered look is normally two fixtures and two DMX addresses — here it is one unit at 3.6 kg.

Eight RGB Zones, Eight White Zones

Each of the 8 RGB sections and each of the 8 white sections can be driven individually, so a chasing pattern can travel down the bar, reverse, or split into blocks of color while the white strobe fires in a different rhythm. For a DJ running a floor, that is the difference between a bar that sits there and a bar that reads as movement from the back of the room.

Macros That Are Already Built In

84 RGB macro effects and 41 white LED strobe effects ship inside the fixture, covering chasing, rotation and racing patterns. On a one-nighter you can pull up a preset and look programmed without touching a cue list — useful when the desk is also running your moving heads and you have no spare time before doors.

Four DMX Personalities, From 4CH To 39CH

Patch it as 4CH when you want a quick effect on a crowded universe, step up through 11CH and 32CH as your rig and your patience allow, or open all 39CH for full control over every RGB and white section. The same fixture, four levels of detail, switchable from the menu — no different SKU to buy when the show gets bigger.

120° Beam — Cover The Room With Fewer Units

The 120° beam angle throws a wide, even field of light rather than a narrow spot, so a pair of PULSARIS 960B units will wash a mid-sized stage or dance floor corner to corner. Fewer fixtures means fewer DMX addresses, less cable and a faster load-out at the end of the night.

Master-Slave, Auto And Sound — No Console Needed

DMX is there when you have a controller, but the PULSARIS 960B also runs in Master-Slave, Auto and Sound-Active mode. Great for a bar that wants the lights moving on the music without paying an operator: set the addressing once, switch to sound activation and let the room drive the show.

165W And A 50,000-Hour LED Life

Pulling 165W on universal AC100–240V mains, the fixture runs cool and light on power, so you can hang several on one circuit. The LEDs are rated for 50,000 hours of average life — that is years of weekend work before you think about replacement, and it is the reason this unit suits rental stock rather than one-off events.

WHO IT’S BUILT FOR

Mobile DJs and club floors
The 8 RGB plus 8 white zone layout is built for the moment the beat drops: color washing across the bar while the white strobe hits on top. Sound-Active mode lets you leave it running hands-free, and at 3.6 kg (7.94 lb) two units fit in a car boot with the rest of your rig.
Nightclubs and bars
Mounted across a ceiling run, the 120° beam covers the floor with few units, and the built-in macros keep the look changing all night without an operator. PowerCon in/out lets you daisy-chain several fixtures on one power run, which matters when the ceiling has two sockets and you need six lights.
Theatres and live productions
The 39-channel personality exposes every RGB and white section separately, so a lighting designer can build layered strobe-and-color looks rather than a single effect. Chase, rotation and racing macros give you a starting point that you can then refine cue by cue.
Rental houses and event production
One SKU that covers color effect duty and white strobe duty keeps the shelf simpler and the truck lighter. The BOX OF 4PCS at $596 lands at $149 per unit, so four fixtures cost the same as four singles while shipping as one box — which is how rental stock actually travels.
Indoor use only
The PULSARIS 960B carries an IP20 rating and is built for stages, clubs, theatres and covered venues. For outdoor or weather-exposed events, choose an IP65-rated fixture from our outdoor range instead.

Where It Fits

Strobes and effect bars are the punctuation of the night: club drops, band peaks, DJ booths, small venue shows and party moments.

FREQUENTLY ASKED QUESTIONS

How is the PULSARIS 960B different from a standard LED strobe?
A standard strobe only fires white. The PULSARIS 960B carries 864 SMD5050 RGB LEDs and 96 white SMD5050 LEDs in the same housing, arranged as 8 RGB sections and 8 white sections. You get a color effect bar and a white strobe in one fixture, and you can run both at once — color chasing underneath, white hitting on top.
How many PULSARIS 960B units will I need?
For a small dance floor, two units placed either side cover the room at the 120° beam angle. For a mid-sized stage or club floor, four is the usual number, and that is exactly how the BOX OF 4PCS ships at $596 — $149 per fixture, the same as buying a single. Larger rooms generally step up to six or eight across a ceiling run.
Do I need a DMX controller to run it?
No. The fixture runs in Master-Slave, Auto and Sound-Active mode with nothing attached — plug in, choose a mode, and the 84 RGB macros and 41 white strobe effects are available immediately. Adding a DMX console unlocks the 4/11/32/39CH personalities and lets you build your own looks instead of using the presets.
Which DMX personality should I use?
4CH is the compact setting for a quick effect on a crowded universe. 11CH and 32CH sit in between for more section control. 39CH opens everything — every one of the 8 RGB and 8 white zones addressed separately — which is what you want for layered, programmed strobe looks. All four live in the same fixture.
Can I use it outdoors?
No. The PULSARIS 960B is IP20-rated for indoor use — clubs, stages, theatres, houses of worship and covered venues. For outdoor or weather-exposed events, choose an IP65-rated fixture from our outdoor range instead.
How is it powered and how does it ship?
It runs on universal AC100–240V, 50/60Hz, drawing 165W, and uses PowerCon in/out for daisy-chaining plus 3-pin XLR for DMX. At 3.6 kg (7.94 lb) and 448 × 210 × 175 mm, four units box together well. Every order includes free USA shipping on most products, a 2-year warranty and a 30-day return policy.
Will it hold up to regular weekend shows?
Yes. The LEDs are rated for 50,000 hours of average life, which is far beyond the hours a working DJ or club fixture sees in a decade. Power draw is a modest 165W, strobe runs 1–25Hz and dimming is fully linear from 0–100%, so the fixture is engineered for repeat load-ins rather than one season.

Technical Specification — SPL-LED-960B

Full factory specification for the PULSARIS 960B (SPL-LED-960B). The 4CH, 11CH, 32CH and 39CH DMX personalities are all built into the same fixture — switch between them from the menu.
Electrical
Input powerAC100–240V
Power frequency50/60Hz
Power consumption165W
Voltage rangeUniversal — works on US and EU mains
Light Source
RGB LED864pcs SMD5050 RGB 3in1 LED
White LED96pcs White SMD5050 LED
Average lifespan50,000 hours
Color System
ColorRGB + White
Dimming & Strobe
Linear dimming0–100% Linear Dimmer
Strobe1–25Hz
Optics
Beam angle120°
Effects & Pixel Control
Zone control8 RGB sections and 8 white LED sections control
StrobeHigh brightness strobe
Built-in effects84 RGB macro effects + 41 white LED strobe effects
Control
ProtocolDMX512
DMX channels4/11/32/39CH
DMX connectorDMX 3-Pin XLR input/output
Power connectorPowerCon input/output
Control modesDMX / Master-Slave / Auto / Sound
DisplayLED display
Housing & Physical
IP ratingIP20 — indoor use only
Housing colorBlack
Working ambient temp.−10°C to 40°C (−14°F to 104°F)
Dimensions448 × 210 × 175 mm (17.6 × 8.3 × 6.9 in)
Weight3.6 kg (7.94 lb)
Everything you need for the PULSARIS 960B
The user manual, the technical specification sheet and the DMX fixture profile for the PULSARIS 960B — one folder, three files.
USER'S MANUAL  ·  TECHNICAL SPECIFICATIONS  ·  FIXTURE'S PROFILE
Building a full rig?
The Download Center holds every SANYI LIGHTS fixture profile in one place — grab the whole set instead of one by one.
Open the Download Center →

SEE HOW IT WORKS
