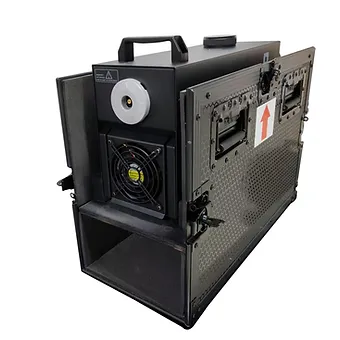

600W Water mist and haze machine with a 2.4L tank, 2CH of DMX, a TFT touch screen and a 9–10 minute preheat.
$3,999.00
| ✔ |
Two Effects In One MachineHaze + Water Mist
Atmospheric haze for beams and a heavier water mist for the room, from one unit
|
| ✔ |
600W And A 2.4L TankLasts The Night
Enough fluid capacity to hold a venue without stopping to refill mid-show
|
| ✔ |
Output And Fan Speed On The Desk2CH DMX
Both the mist volume and the fan are controllable from the console
|
| ✔ |
TFT LCD Touch ScreenManual Or DMX
Set preheat, output and fan locally, or hand the whole machine to the desk
|
| ✔ |
14 kg, Ships In A Road CaseTouring Ready
Protected in transit and manageable for one person to position
|
Shop by use case: Club & Bar · Houses of Worship · Special Event
$3,999.00
The MAGICAL MIST produces both a fine haze and a water mist. Fine haze is the particle layer that makes moving beams, lasers and gobo patterns visible in the air; water mist is the heavier, low-lying effect that pools along a stage edge and catches uplights. Having both means one machine covers the atmospheric looks that would otherwise need two units and two runs of fluid.
Power output is 600W on AC110V at 50/60Hz, protected by a 15A fuse, and the tank holds 2.4L. Together those two numbers decide how the machine behaves over a long night: enough heat to convert fluid quickly, and enough capacity that it keeps converting it without a refill break in the middle of a set. A cooling fan keeps the unit working consistently as it heats up.
DMX control gives you 2 channels over a DMX 3/5-pin input/output connection, so haze output and fan speed are both controllable from the desk. That is the difference between a machine that is simply on and one that is part of the show — you can build the haze up under a chorus, pull it back for a quiet number, and push the fan harder when you want the effect to travel across the room.
Output level, fan speed and mode are set from a TFT LCD touch screen on the fixture. On a hazer that matters more than it sounds: a machine that lives at the side of a stage gets adjusted mid-show, in the dark, by whoever is nearest. A touch panel makes those changes fast and unambiguous. Control mode is Manual or DMX, so the panel is all you need when there is no console.
Preheat time is 9–10 minutes to full working temperature. That is the number to plan a load-in around — switch the unit on when the rig goes up and it is at temperature well before doors. It also means the machine is honest about how much fluid it has converted, so the haze level you set is the level you get, rather than an effect that fades as the heater catches up.

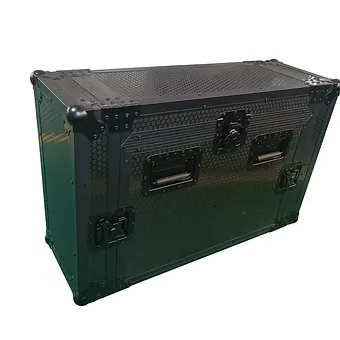

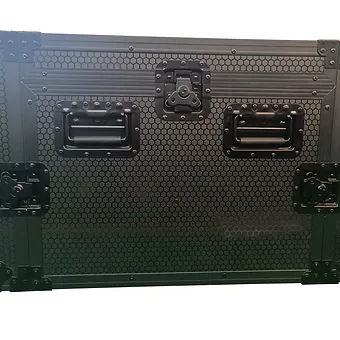

At 14 kg (30.9 lb) in a 580 × 170 × 304 mm (22.8 × 6.7 × 12 in) body, the MAGICAL MIST is a manageable two-hand lift and fits beneath a stage edge or behind a set piece. The $3,999 package ships with the road case, which is what protects the unit in a vehicle and lets it be stored stacked rather than loose. Working range is −10°C to 40°C (−14°F to 104°F).
Haze and mist are what make beams visible, so this is the fixture behind the look: DJ booths, club and theatre stages, small venue shows, photo shoots and production rehearsals.
The MAGICAL MIST produces both a fine haze and a water mist. Fine haze is the particle layer that makes moving beams, lasers and gobo patterns visible in the air; water mist is the heavier, low-lying effect that pools along a stage edge and catches uplights. Having both means one machine covers the atmospheric looks that would otherwise need two units and two runs of fluid.
Power output is 600W on AC110V at 50/60Hz, protected by a 15A fuse, and the tank holds 2.4L. Together those two numbers decide how the machine behaves over a long night: enough heat to convert fluid quickly, and enough capacity that it keeps converting it without a refill break in the middle of a set. A cooling fan keeps the unit working consistently as it heats up.
DMX control gives you 2 channels over a DMX 3/5-pin input/output connection, so haze output and fan speed are both controllable from the desk. That is the difference between a machine that is simply on and one that is part of the show — you can build the haze up under a chorus, pull it back for a quiet number, and push the fan harder when you want the effect to travel across the room.
Output level, fan speed and mode are set from a TFT LCD touch screen on the fixture. On a hazer that matters more than it sounds: a machine that lives at the side of a stage gets adjusted mid-show, in the dark, by whoever is nearest. A touch panel makes those changes fast and unambiguous. Control mode is Manual or DMX, so the panel is all you need when there is no console.
Preheat time is 9–10 minutes to full working temperature. That is the number to plan a load-in around — switch the unit on when the rig goes up and it is at temperature well before doors. It also means the machine is honest about how much fluid it has converted, so the haze level you set is the level you get, rather than an effect that fades as the heater catches up.
At 14 kg (30.9 lb) in a 580 × 170 × 304 mm (22.8 × 6.7 × 12 in) body, the MAGICAL MIST is a manageable two-hand lift and fits beneath a stage edge or behind a set piece. The $3,999 package ships with the road case, which is what protects the unit in a vehicle and lets it be stored stacked rather than loose. Working range is −10°C to 40°C (−14°F to 104°F).
Haze and mist are what make beams visible, so this is the fixture behind the look: DJ booths, club and theatre stages, small venue shows, photo shoots and production rehearsals.
| Input power | AC110V |
| Power frequency | 50/60Hz |
| Power consumption | 600W |
| Fuse | 15A |
| Output | Direct spray |
| Water mist | Water Mist effect |
| DMX channels | 2CH |
| DMX connector | DMX 3/5-pin input/output |
| Power connector | IEC input |
| Control mode | Manual / DMX |
| Display | LCD display |
| Cooling method | Fan |
| Tank capacity | 2.4L |
| Pre-heating time | 9–10 minutes |
| Product dimensions | 580 × 170 × 304 mm (22.8 × 6.7 × 12 in) |
| Weight | 14 kg (30.9 lb) |
| IP rating | IP20 — indoor use only |
| Housing color | Black |
| Working ambient temp. | −10°C to 40°C (−14°F to 104°F) |
