JUBARIS BEAM L200

SKU SPL-LED-200

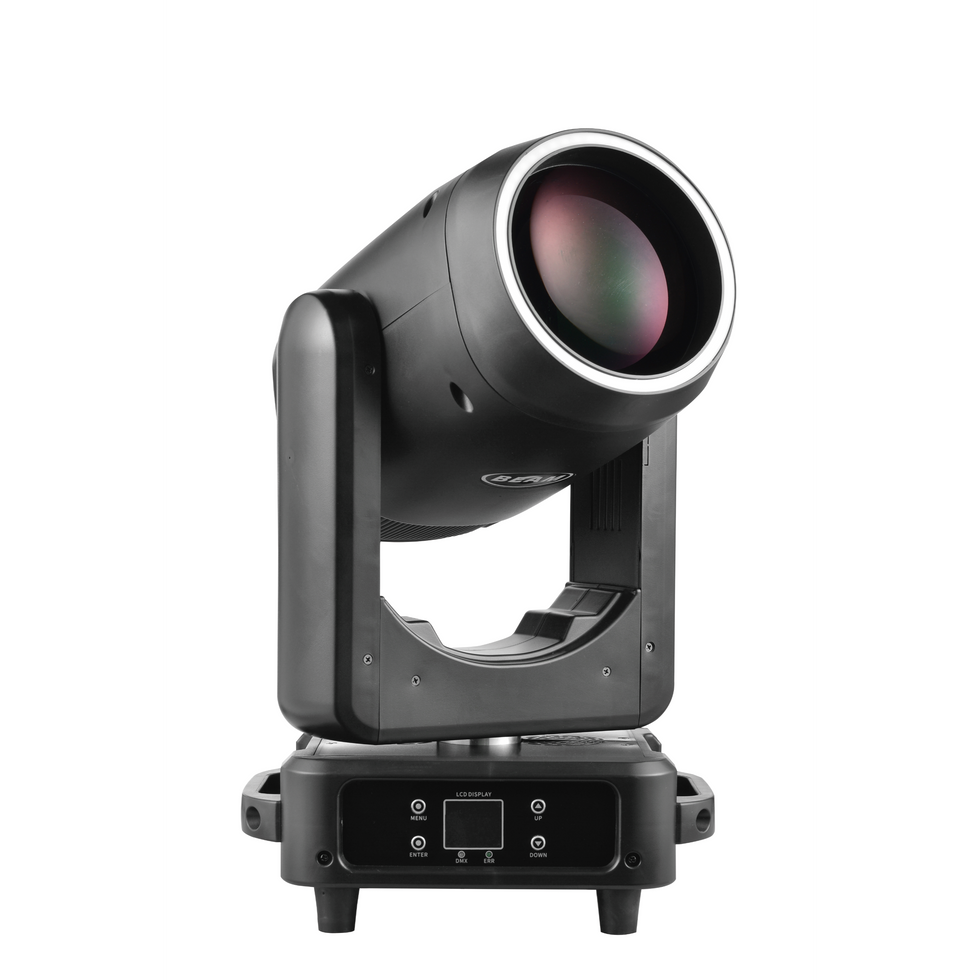

200W LED Moving Head Beam with Prisms and RGB Halo Rings for Theaters, Clubs, Event Halls and Other Indoor Events



Dual Rotating Prism System for Spectacular Lighting Effects:

The JUBARIS BEAM L200 is equipped with a powerful double-layer prism system. Prism 1 features an 8-facet rotating prism, while Prism 2 offers a 16-facet rotating prism. For even more dynamic visuals, an additional 24-facet rotating prism is included, allowing for overlapping effects that add depth and intricacy to your lighting designs. Perfect for large-scale events, concerts, and live performances, these prisms ensure your light shows are engaging and visually impressive.



Static Gobo Wheel with 15 Metal and 2 Glass Gobos

This moving head beam includes a static gobo wheel containing 15 metal gobos and 2 glass gobos, delivering crisp and clear projections. These gobos allow for stunning visuals with precise patterns and imagery that are ideal for stage lighting, theatrical performances, and themed events. The open feature provides the flexibility to switch between gobo projections and direct beams easily.



Built-in Macro Effects for Instant Visual Creativity

With various built-in macro effects, the JUBARIS BEAM L200 offers dynamic lighting options that can be easily activated. These macros create vibrant, eye-catching effects, allowing lighting designers to quickly enhance their shows without manual programming.

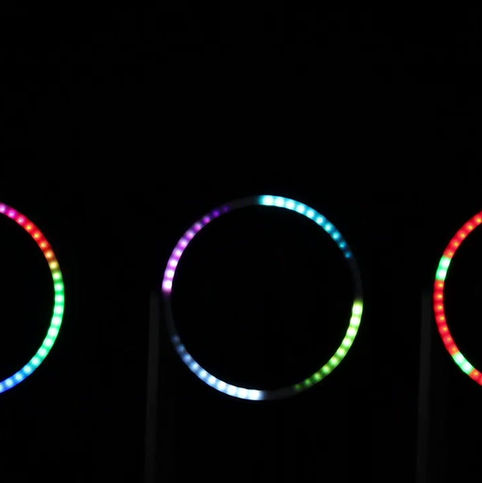

54-Piece RGB LED Halo Ring for Accentuated Visual Appeal

Surrounding the primary beam, a halo ring composed of 54 RGB LEDs adds a colorful dimension to the lighting setup. These halo rings are designed with macro effects to provide an additional layer of visual creativity, making the JUBARIS BEAM L200 a standout in any lighting rig. This feature is ideal for concerts, nightclubs, and corporate events, where visual diversity is a must.


200W High-Output LED for Intense Beams

At the heart of the JUBARIS BEAM L200 is a 200W LED light engine that delivers bright, intense beams with a color temperature of 9000K. This high-power LED provides excellent brightness and sharpness, cutting through fog and atmospherics with ease, ensuring your lighting effects stand out in any environment.



Warranty: 2 Years

If you want to know more about our warranty and return policy,

please refer to our warranty page and return page.

Quantity

Product info

ELECTRICAL
Input power:AC100-240V
Power frequency:50/60Hz

Power consumption: 350W

Fuse: 5A



LIGHT SOURCE
Main Source: 200W LED

CCT: 7500K
Halo Ring: 54 pcs RGB LED
Average lifespan: 50000hours



COLOR SYSTEM
Color wheel: 14 colors + open
Frost + Rainbow effect

Split color



ELECTRONICS
Linear dimming: 0-100% Linear Dimmer

Strobe: 1-25Hz



OPTICS
Beam Angle: 1.5°

Cooling method: Fan cool



DYNAMICS EFFECTS
Prism1: 8-facet rotating

Prism2: 8+16+24-facet rotating prism

Gobo: 15 metal gobos+2 glass gobos+open

Color: 14 color+open, split color, rainbow, frost



CONTROL
DMX channels: 19CH
DMX connector: 3-Pin XLR input and output

Power connector: PowerCon input/output

Control mode:DMX/Master-Slave/Auto/Sound
Pan: 540°,16bits scanning
Tilt: 270°, 16bits scanning
LCD touch display with 4 buttons



PHYSICAL

IP Rating:IP20
Housing color: black
Working ambient temp.:-10°C to 40°C (-14°F to 104°F)

Dimensions: 293*240*572mm/11.5*9.5*22.5in
Weight: 13.5kg/29.8lb
